Outdoor sauna/MODULAR SAUNA KALLE “L”

Outdoor sauna/MODULAR SAUNA KALLE “L”

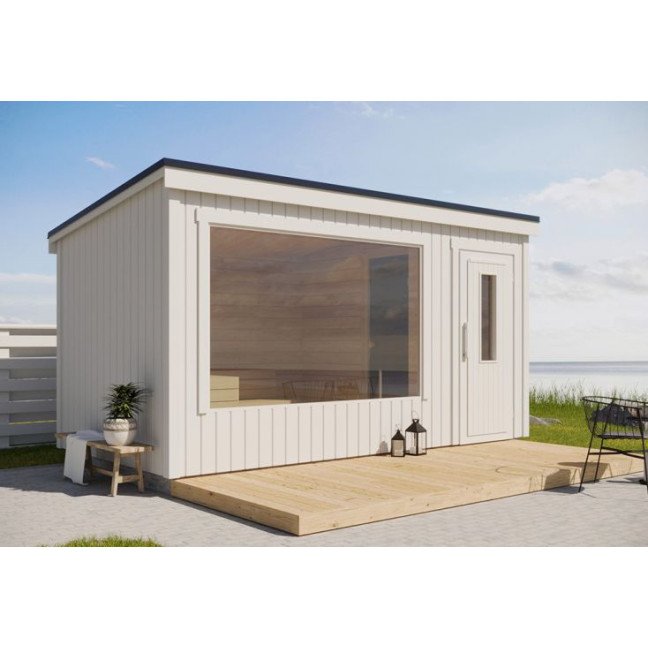

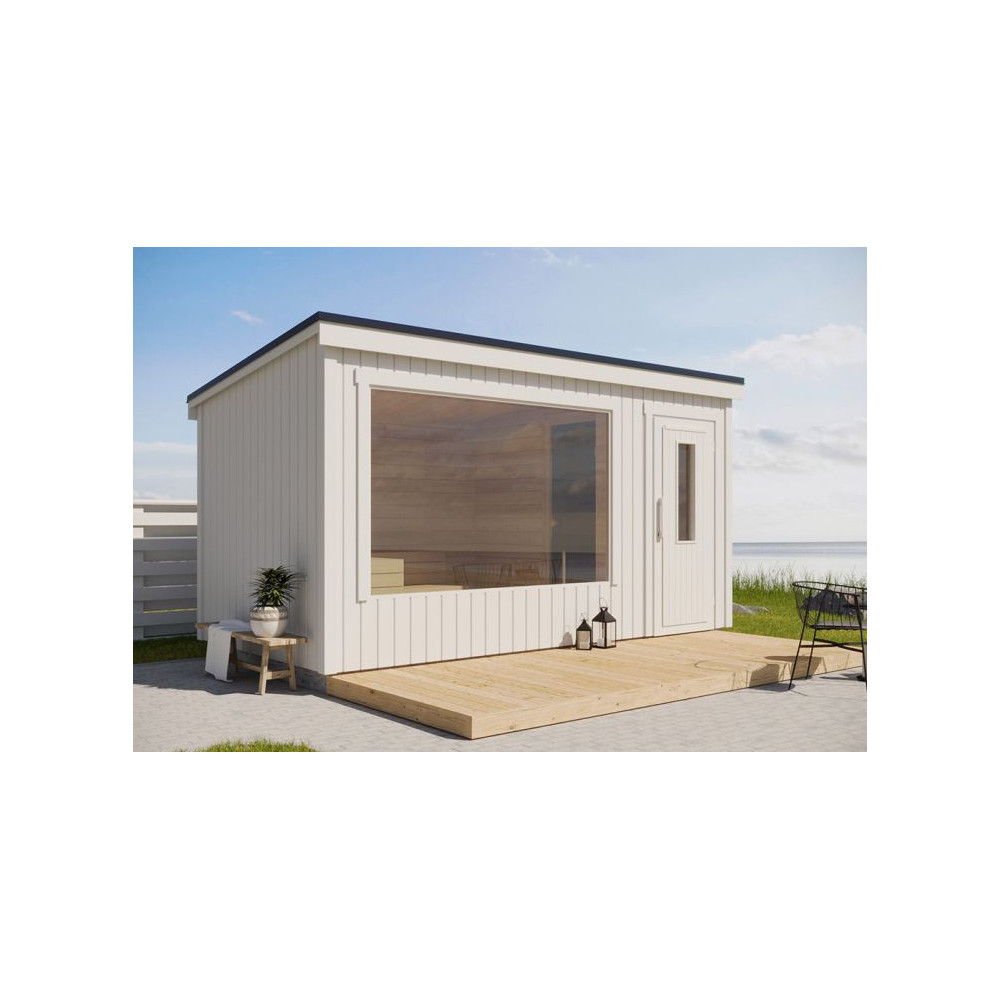

The Kalle L sauna by Inmedias Res benefits from a modern design characterized by a flat roof and a large glass window measuring 230 x 148 cm present on the facade. It has been designed in raw spruce and therefore untreated, but has good insulation that allows you to enjoy your sauna sessions in the best conditions.

The sauna cabin has thick walls of 18 cm that combine wood and mineral wool insulation.

The wood used to design this sauna cabin is therefore raw, which means that you will have to protect it from insects,

Fungi and humidity with an insecticide/fungicide treatment. You can then paint the cabin if necessary to integrate it as much as possible from the outside. Note that Wood is certified, indicating that it comes from forests managed with respect to the environment.
All wooden parts are made of spruce.

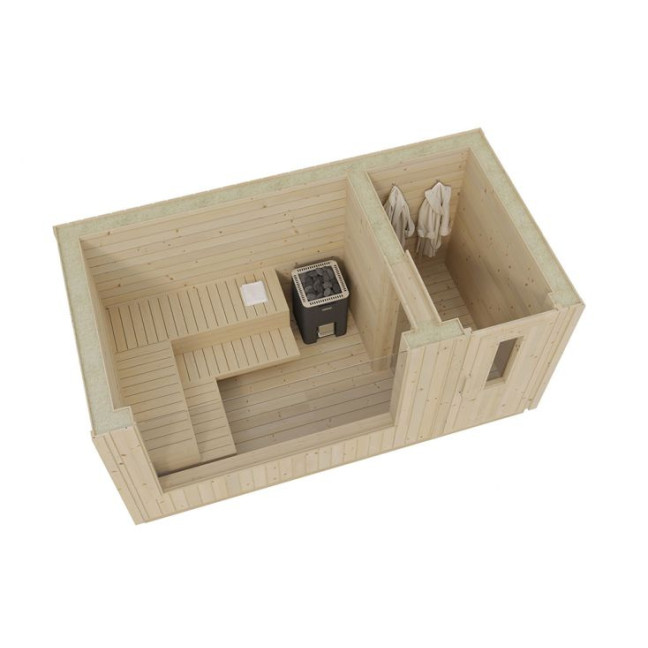

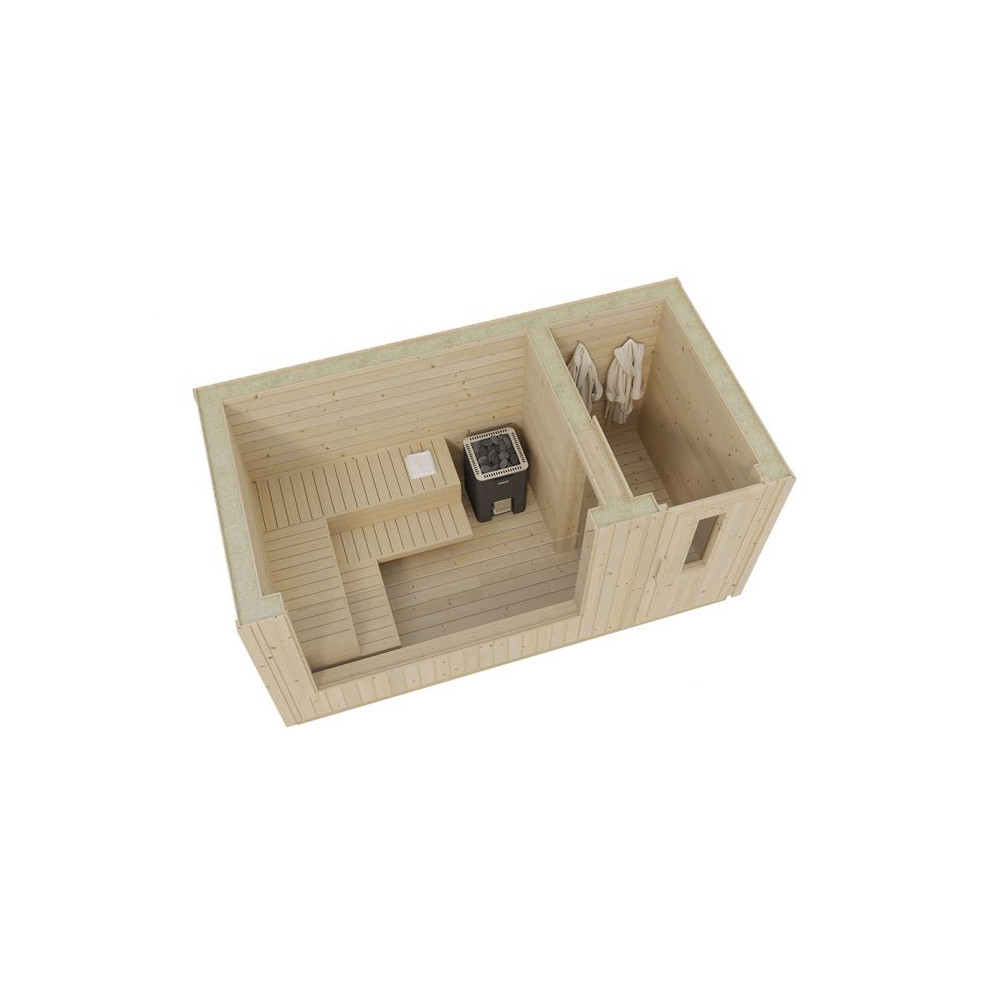

This outdoor sauna is 4.40 m wide by 2.25 m. It offers an internal space of 7.6 m² and has two rooms, a sauna area and a changing room, separated by a glass door.
The OSB floor includes a layer of expanded polystyrene (EPS) insulation, and its beams are treated with impregnation to resist humidity and insects. Its roof is also insulated with a layer of 10 cm of mineral wool and has a shingle blanket for optimal sealing of the cabin.
The cabin is supplied complete, also with precise instructions. It must be adjusted on a hard and perfectly flat wooden terrace or concrete slab.

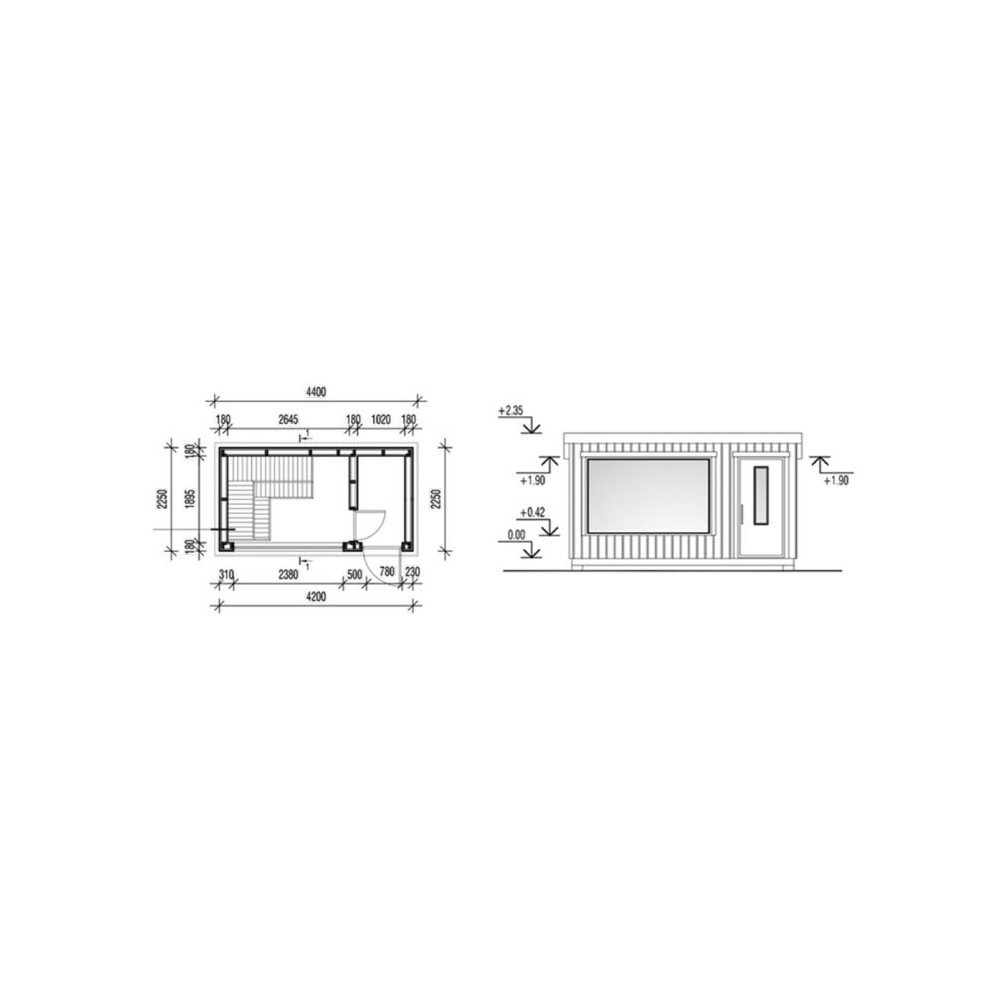

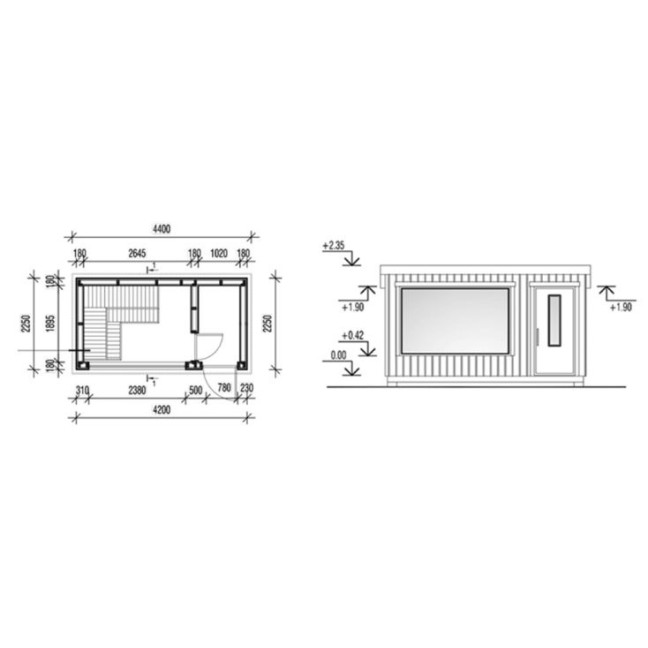

Technical specifications:

• Dimensions: 440 x 225 cm
• Area: 7.6 m2
• Wall height: 220 cm
• Total height: 250 cm
• Wall thickness: 18 cm
• Entrance dimensions: 90 x 190 cm
• Window dimensions: 230 x 148 cm
• Tempered glass
